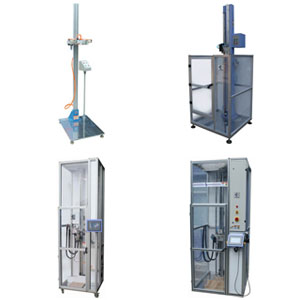

Automatism Mobile Phone Drop Tester | Pneumatic Mobile Phone Drop Tester
Model: SZ-6404

Be Suitable for mobile telephone, PDA, electronic dictionary, MP3. This tester can be used for various kinds of portable products which are performed the drop test.

■ Test Standard

YD/T 1539-2006 移动通信手持机可靠性技术要求和测试方法
JIS C 0044-1995 环境试验方法—电气•电子—自然落下试验方法
IEC 60068-2-31:2008 环境试验.第2-31部分：试验.试验Ec：粗处理冲击（主要用于设备型试样）

■ Specifications

Model	SZ-6404A	SZ-6404B	SZ-6404C	SZ-6404D
Drop Height Range	300～2000mm
Height Resolution	1cm	1mm	2mm	2mm
Drop Height Adjustment	Manual	Manual (Automatic return)	Automatic (Automatic return)	Automatic (Automatic return)
Drop Speed Test	No	No	No	Yes
Drop Angle	No		0°、45°、90°
Test Load	Max. 2kg±100g
Drop Floor	Solid board, Dali, Floor slab, Acrylic board, Steel plate (Optional)
Drop Floor Size	500×600mm
Dimension	W700×D900×H2500mm	W700×D900×H2250mm	W1000×D1180×H2400mm	W1000×D1180×H2400mm
Weight	80kg	120kg	420kg	420kg
Power	1∮ AC220V 5A
Gas Source	≥0.5MPa
