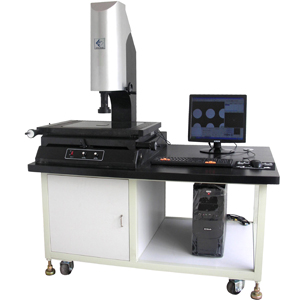

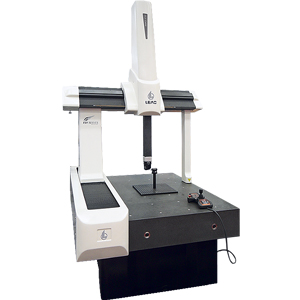

Full Automatic 3D Vision Measuring Instrument | Automatic Image Measuring Instrument
Model: SZ-VMC
Full automatic series is the latest vision measuring measuring machine developed by xycxie who has accumulated cnc developed experiences over the past years. The machine improves the original weighted structure to a well-proportioned and pleasing shape and adopts special transmission modular design, the lens with laser head image module and friendly software made it more stable, convenient and professional than ever.

Select Configuration

  • Renishaw Touch the test probes, With a special measurement software for slope, three-dimensional workpiece circular, groove, column, ball, cone, blind, height measurement.

Specifications

Model

SZ-VMC3020

SZ-VMC4030

Measuring Stroke

X300×Y200×Z200mm

X400×Y300×Z200mm

Operation

Automatic, mouse + joystick control

Measurement Accuracy

           X, Y Axis E2=(3+L/200)µm, Z Axis E1=(5+L/200)µm     L: mm

Repeatability

X, Y Axis3µm; Z Axis5µm

Max. Speed

XY Axis =150mm/sZ Axis =80mm/s

Moving Acceleration

XY Axis =300mm/s2Z Axis =150mm/s2

Framework

Cantilever structure, Marble frame

Transmission Mode

No teeth mute lead screw transmission

Drive Mode

Servo motor drive

Light System

LED Cold light source, Automatic control

Imaging Systems

430,000 pixel 1/3color CCD

Zoom Lens

Automatic continuous zoom lens

Magnification

Optical magnification: 0.74.5×; Image magnification: 28145×

Encoder

Open grating ruler

Grating Ruler Resolution

1µm

Software Output

WordExcelAutoCADSPC

Load Capacity

25kg

Dimension

W1100×D800×H1850mm

W1100×D800×H1850mm

Weight

280kg

310kg

Power

1 AC110/220V 50/60HZ 240W
