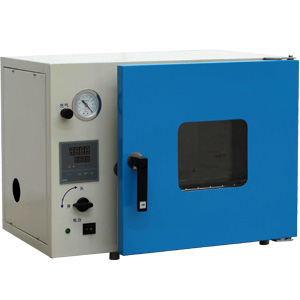

Aging Tester | Aging Oven
Model: SZ-TA
This machine is used for testing changes in characteristics of plastics, rubber, leather and fabrics before andafter heating. The specimen is checked to see its discoloration, split, shrinkage,extension, residual ratio, etc. so as to determine the aging characteristics.

Test Standard

  • GB 2099.1-2008 家用和类似用途插头插座 第1部分:通用要求
  • GB/T 2423.2-2008 idt IEC 60068-2-2:2007 电工电子产品环境试验第2部分:试验方法 试验B:高温
  • GB/T 5013-2008 idt IEC 60245:2003 额定电压450/750V及以下橡皮绝缘电缆
  • GB/T 5023-2008 idt IEC 60227:2007 额定电压450/750V及以下聚氯乙烯绝缘电缆
  • GJB 150.3-1986 军用设备环境试验方法 高温试验

Specifications

Model

SZ-TA64

SZ-TA150

Interior Dimensions

W450×D400×H400mm

W500×D500×H600mm

Temp. Range

Room Temp.+5200℃ or 300℃ (Optional)

Heating Rate

Room Temp. to 100 about 8min

Temp. Accuracy

±0.5

Temp. Uniformity

±2

Temp. Control

LED display, PID automatically calculation Micro-procesa temperature controller

Time Device

99.9sec999hr

Test Frame

Rotating at 10rpm, double layers test frame

Interior Material

SUS304 Stainless Steel

Exterior Material

Steel Plate power coating

Exterior Dimensions

W620×D515×H910mm

W670×D615×H1110mm

Weight

87kg

90kg

Power

1 AC220V 18A
