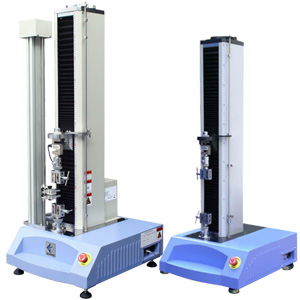

Electronic Universal Testing Machine | Tensile Testing Machine
Model: SZ-TMA5
By this machine, mechanical tests and analysis research of metal materials, nonmetal and complex material can be carried out. Based on specifications of GB, ISO, ASTM, DIN, JIS, it can automatically determine max test force value, break force value, max & min yield strength, tensile strength, various elongation strains, various elongation ratios, anti-pressure strength, bending deflection, elastic modulus, fixed elongation stress, fixed for test of parts for performance Curves can be printed for mechanical

performance indexes of Fm, Rm, Rp, ReH, Rel, Re, A, Z, Ae, Ag, Agt, At,μor E, as well as load-deformation, stress-straining, load-time, deformation-time, or displacement-time.

Specifications

Model

SZ-TMA5

Load
Measurement

Capacity Optional

20N, 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN

Measurement Range

0.4100%FS

Load Accuracy

±0.5%

Load Resolution

1/500,000

Stroke
Measurement

Stroke Accuracy

±0.5%

Stroke Resolution

0.025μm

Large Deformation
Extensometer (
Optional)

Measurement Range



10800mm

Accuracy



±0.5%

Resolution



2.5μm

Test
Speed

Range

0.001500mm/min

Accuracy

±0.5%

Stroke

650mm

1000mm

Effective Width

130mm

130mm

Dimension

W500×D600×H1230mm

W500×D600×H1580mm

Weight

75kg

95kg

Power

1 AC220V 5A
