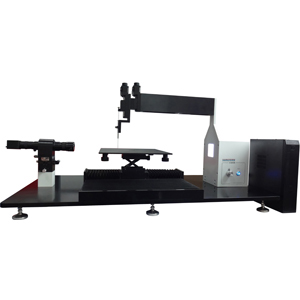

Big Platform Contact Angle Meter (Sample Table Size Custom-Made Model)
Model: SZ-CAMB1-3040／SZ-CAMB3-3040 This series is a large-scale contact angle measuring instrument based on the size of user samples. By measuring the contact angle of the liquid on the solid surface, the wettability of the liquid to the solid is judged, and then the cleanliness and treatment effect of the solid surface are tested. It is widely used in contamination detection, adhesion analysis and surface treatment effect evaluation of large sample surfaces such as glass, LCD screen, touch screen, packaging substrate, etc. |
■ Test Standard
■ Selection Guide
|

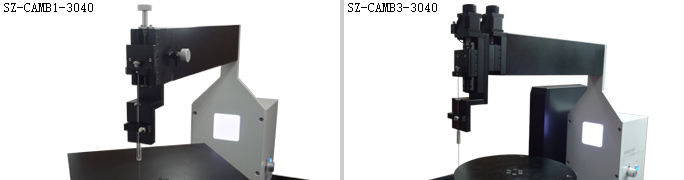

Model |
SZ-CAMB1-3040 |
SZ-CAMB3-3040 | |
|
Drip System |
Drip Way |
Manual Type |
Automatic Type |
|
Min. Drip Volume |
|
0.1μl / Drop | |
|
Drip Precision |
±1μl |
±0.05μl | |
|
Dimension |
W1165×D600×H |
W1165×D600×H | |
|
Weight |
|
| |
|
Power |
1∮ AC220V 50HZ | ||
■ Specifications
|
Contact |
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface / Interfacial Tension Test |
Calculation Method |
Manual Method, Automatic Method |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Estimation of Surface Energy |
Estimation Model |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Liquid Database |
Preset urface tension and component data of 37 kinds of commonly used liquids | |
|
Drip System |
Drip Way |
Automatic Type |
|
Min. Drip Volume |
0.1μl / Drop | |
|
Drip Precision |
±0.05μl | |
|
Sample Stage |
|
X300×Y |
|
Mobile Stroke |
X Axis=30 | |
|
Mobile Mode |
Manual |
■ Optional Accessories
■ Examples of Application
