Dynamic Contact Angle Meter | Contact Angle Tester (Dynamic Integral Inclined Type)
Model: SZ-CAMC13／SZ-CAMC33 In this series, besides the static contact angle measured by stop-drop method, the dynamic contact angle (including forward contact angle, backward contact angle and rolling angle) can be measured and analyzed by inclined plate method. At the same time, the liquid surface tension can be measured, the solid surface energy can be estimated and the wettability can be analyzed. Widely used in biochemical industry, nanotechnology, coating technology, water-resistant materials, science, education, military and other cutting-edge areas of testing and research.
|
■ Test Standard

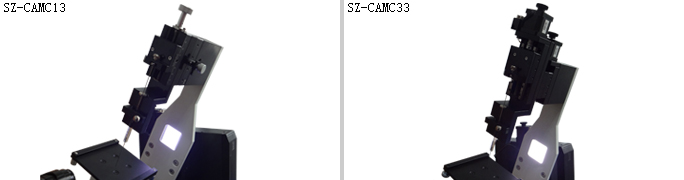

■ Selection Guide
|
Model |
SZ-CAMC13 |
SZ-CAMC33 | |
|
Drip System |
Drip Way |
Manual Type |
Automatic Type |
|
Min. Drip Volume |
|
0.1μl / Drop | |
|
Drip Precision |
±1μl |
±0.05μl | |
|
Dimension |
W585×D280×H |
W585×D280×H | |
|
Weight |
|
| |
|
Power |
1∮ AC220V 50HZ | ||
■ Specifications
|
Contact |
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface / Interfacial Tension Test |
Calculation Method |
Manual Method, Automatic Method |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Estimation of Surface Energy |
Estimation Model |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Liquid Database |
Preset urface tension and component data of 37 kinds of commonly used liquids | |
|
Inclined Sample Stage |
|
X100×Y |
|
Mobile Stroke |
X50×Y50×Z | |
|
Mobile Mode |
Manual | |
|
Inclined Mode |
Automatic | |
|
Inclined Range |
0°～±90° | |
|
Inclined Error |
±0.01° |

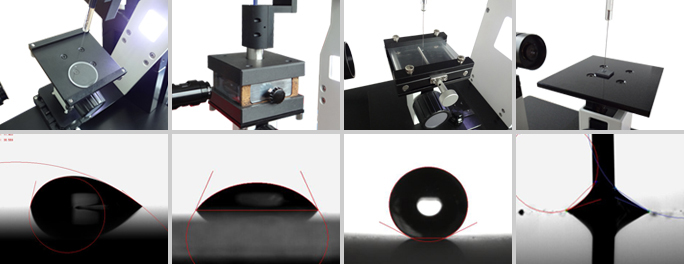

■ Optional Accessories
■ Examples of Application
