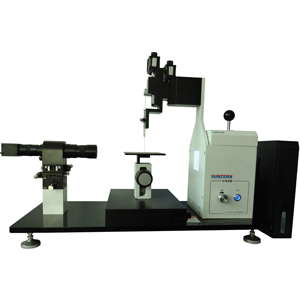

Automatic Contact Angle Measuring Instrument (Static State Fully Automatic Type)
Model: SZ-CAMD3 This machine is a fully automatic intelligent contact angle measuring instrument with excellent functions. The movement of drops and sample tables is controlled by software, and the automatic and time-repetitive and controllable measuring method is realized. Widely used in chemical industry, medicine, food, electronics, printing and dyeing, spraying, military industry, science and education and other cutting-edge areas of testing and research.
|
■ Specifications
|
Contact |
Calculation Method |
Height-Width Method, Angle Measuring Mmethod, Ring Method, Ellipse Method, Tangent Method, Young-Laplace Method |
|
|
0°～180° | |
|
Test Error |
±0.1° | |
|
Test Resolution |
0.001° | |
|
Surface / Interfacial Tension Test |
Calculation Method |
Manual Method, Automatic Method |
|
|
0.01～2000mN/m | |
|
Test Error |
±0.1% | |
|
Test Resolution |
0.001mN/m | |
|
Estimation of Surface Energy |
Estimation Model |
Fowkes, Extended Fowkes, Owens-Wendt, van |
|
Liquid Database |
Preset urface tension and component data of 37 kinds of commonly used liquids | |
|
Drip System |
Drip Way |
Automatic Type |
|
Min. Drip Volume |
0.1μl / Drop | |
|
Drip Precision |
±0.05μl | |
|
Sample Stage |
|
X120×Y |
|
Mobile Stroke |
X120×Y150×Z | |
|
Mobile Mode |
Automatic | |
|
Dimension |
W780×D300×H | |
|
Weight |
| |
|
Power |
1∮ AC220V 50HZ | |
■ Optional Accessories

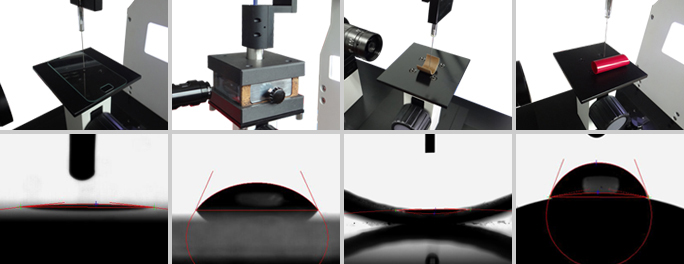

■ Examples of Application
| Link: |
