Product classification

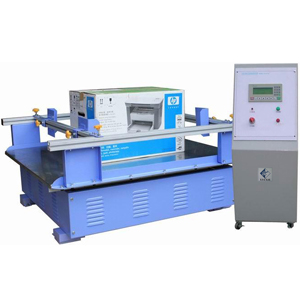

Conveyance Vibration Tester
Model: SZ-7104A
The machine used in electronics, electrical appliances, packaging and other products, and large pieces of the product and packaging for transport testing, rotary vibration (commonly known as Happy Valley, Taiwan), in line with U.S. and European transport standards.

Test Standard

  • ASTM D 999-2008 装运集装箱振动测试标准测试方法
  • ISTA 1A-2001 完全不模拟运输完整性的性能测试
  • EN 71-1:2005 玩具安全第1部分:机械及物理性能测试

Specifications

Model

SZ-7104A-100

SZ-7104A-1000

Vibration Mode

Convolution Type

Vibrating Frequency

100300rpm (1.675HZ)

Frequency Display Precision

0.01HZ

Amplitude (P-P)

25.4mm (1inch)

Timer

099.99 (hr/min/sec)

Effective Table Area

W1000×D1000mm

W1500×D1000×H1500mm

Max. Load

100kg

1000kg

Motor Power

1HP (750W)

3HP (2.25KW)

Dimensions

W1100×D1300×H650mm

W2400×D1450×H1500mm

Weight

300kg

2400kg

Power

1 AC220V 10A

1 AC220V 15A
